2' x 4' CONCENTRATING TABLES 2' x 4' CONCENTRATING TABLE and 12" x 12" MINERAL JIG
SILVER SPRINGS

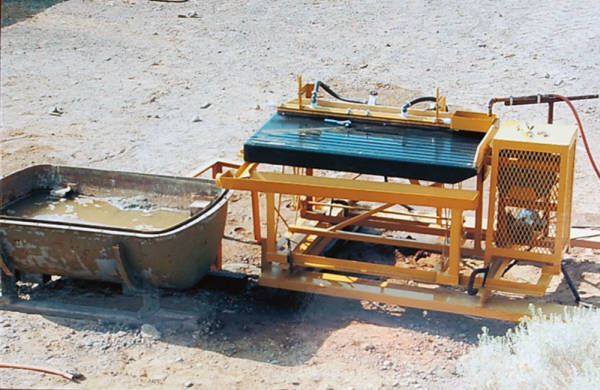

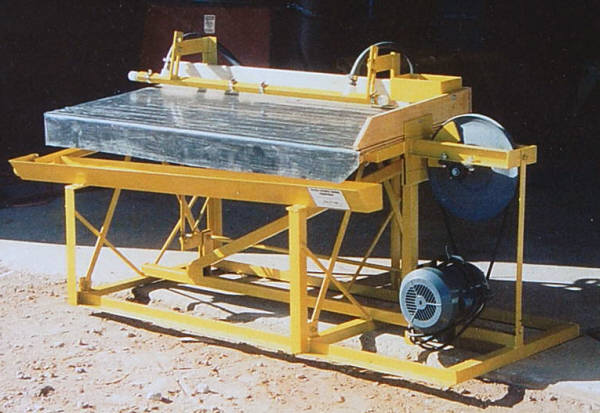

2'x4' Concentrating Table
Description of unit
1. Deck size 2' x 4.5' (60 cm x 137 cm).
2. Total size 2.5' x 2.5' x 6.5' (76 cm x 76 cm x 200 cm).
3. Total weight 125 pounds (57 kg).
4. Shipping weight 500 pounds (225 kg).
5. Power = 1/2 HP TEFC enclosed motor 50 hz 220 v.
6. Adjustable stroke 5/8''- 3/4'' factory preset.
7. Adjustable speed - factory preset.
8. Vibration Frequency 225 BPM - factory preset.
Same setting works for very fine material up to 2 mm.
The more screens you use the better. If practical, screen and run separate 12, 20, 40, etc. mesh material.
9. Adjustable tilt - factory preset.
10. EPDM table surface (special rubber). Keep the surface covered, out of the sun, when not in use, for
added years of service.
11. Tapered riffles.
12. All steel frame.
13. 2 spray bars.
14. Sliding splitter.
15. Skid mount.
16. Average feed capacity is 350-400 pounds (180 kg) per hour.
The table has to be securely mounted to a sturdy floor. If on concrete use the holes in the skids to bolt it down. If used outside, mount it to timbers and pack gravel/dirt around them to keep it from moving.
Water has to be provided at a low even pressure just enough to create a sheet of water over the table (about 4-5 gallons/minute.)
Run the material in a steady even amount that creates a ratio of approximately 4 parts water to 1 part concentrate.
If your material runs too slow lift the front of the frame with the table about 1/4'' (1 cm), so it tilts a little end to end.
This unit has adjustable settings, but comes factory preset, and should run best if these settings are not altered.
