Gold Mining Equipment, Supplies, Prospecting Tools, and Industry Information



► Can smelt ore concentrates, fire assay, melt pure metals, old jewelry
► Bi-metal brass tipped Propane Burner
► Replaceable internal components
► Reaches 2300 degrees Fahrenheit
► Accomodates a variety of different types and sizes of crucibles
► Work with the original Kwik Kiln
► Price $ 698

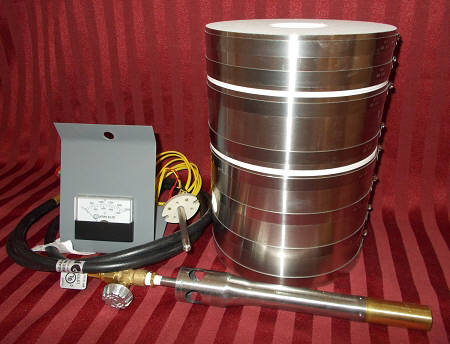

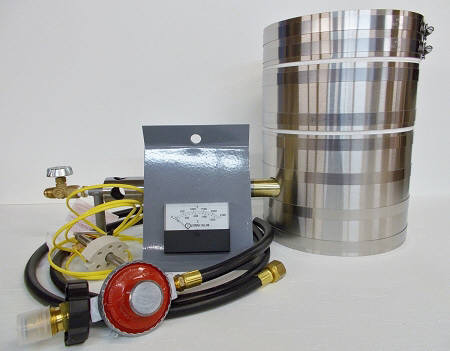

This KK-8 propane fired furnace can smelt ore concentrates, fire assay, melt pure metals, old jewelry... it can do it all and in larger quantities. Quiet, too. Included will be a custom USA built precision machined bi-metal brass tipped Propane Burner, 6' Hose and 30 psi regulator, Needle Valve, Olympic Analog Pyrometer and (2) 40 gr '1 shot' Clay Crucibles.

The KK-8 is constructed of a stainless steel tension adjustable jacket, surrounding alumina silicate refractory insulation that comprises the interior of the kiln. The refractory insulation has an operating temperature rating of 2300 degrees F.

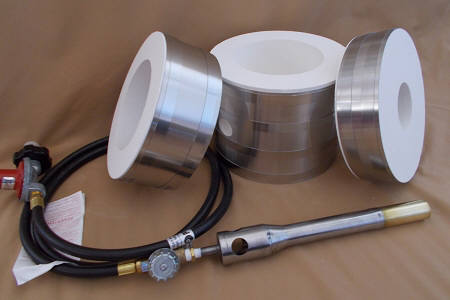

We offer the only sectional kiln that allows for easy removal of the crucible before pouring. The liner of the kiln is constructed in a layered and stacked configuration and is less susceptible to cracking from thermal expansion and contraction, as each layer can expand or contract separately. Another feature of the layered and modular design is that individual sections of the kiln liner can be replaced at a fraction of the cost of replacing the whole liner, in the event of a serious spill or boil over of the crucible. Instruction Manual included.

KK8 with the original Kwik Kiln beside it.

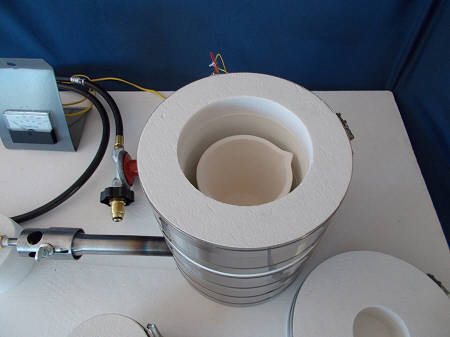

The KK8 propane fired furnace accomodates a variety of different types and sizes of crucibles.
