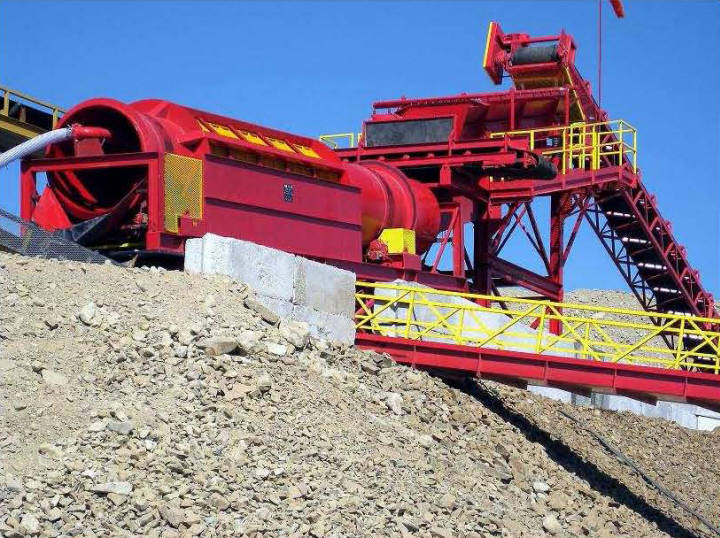

GEO-S8 - Skid-Mounted Trommel Plant

GEO-S8 (250 to 300 Tons per hour) Skid Mounted Trommel Plant, with 4 sluice boxes 3 feet x 20 feet (850 mm x 6100 mm) and nugget trap. With Pre-grizzly feeder and lattice feed conveyor can be added at your request.

Power Requirement is 150 KW.

Water requirements are 1,700 gallon per minute (6435 liters per minute.)

Generator and water pump not included in price.

Our gold trommels have a full power 4 point drive system (which eliminates the chain drive), is fully reversible, and has a full variable speed control. Testing showed that some of the biggest complaints with trommels was screen blockage, so we have taken and installed full rubber octagon screening media to help eliminate this issue, and expensive but needed adaptation. Another advantage with this screen media, is it has 10 to 15 times the life of steel. Additionally, the screen media snaps into place which only take minutes instead of days or weeks as with some other systems.

Test results.
With machine properly equipped and proper screen sizing and even fed material test plant was able to achieve up to 340 Tons Per Hour with the S8 using materials as follows:
60% @ ¾” minus 25% @ 1½” to 3” 15% @ 3” plus 3000 Gallon per min. water.

Results will vary depending screens, water and material conditions.
